Polarization circuit for bipolar transistor

Polarization circuit for bipolar transistor

Reading time: <1 minut

What does the paper present?

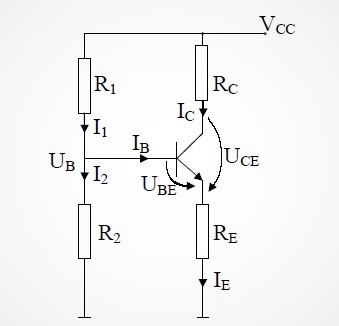

In this laboratory work we exemplify the calculation method for one of the most used polarization circuits for the bipolar transistor.

Polarization of a transistor

The polarization of a transistor involves the construction of a circuit so that the transistor usually operates in direct polarization and at certain parameters. For this the BE (base-emitter) junction must be directly polarized and the CB (base-collector) junction to be polarized inversely.

Paper structure:

  • Theoretical considerations
  • Carrying out the work
  • Content of the proposed paper

Some interesting tutorials about bipolar transistor operation, are presented below:
